OTI800 Engine Ignition Analyzer to Analyze Hidden Defects at the Initial Level

Description

Introduction for OTI800 Engine Ignition Analyzer to Analyze Hidden Defects at the Initial Level

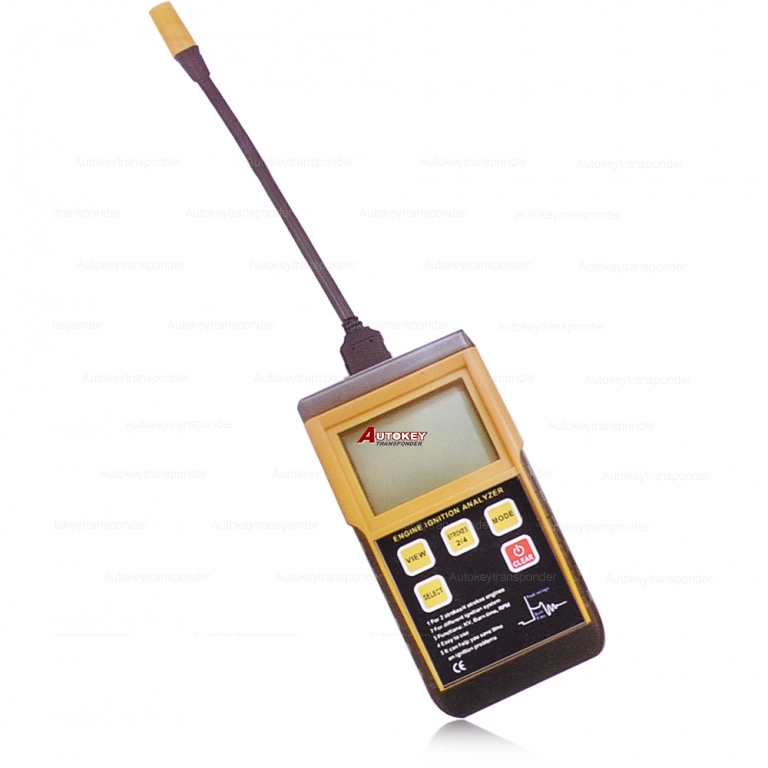

OTI800 Engine Ignition Analyzer to Analyze Hidden Defects at the Initial Level.Works on all spark-ignition engines, from small 2-stroke engines with magnetos to modern cars with computer-controlled coil on plug systems

Descriptions for OTI800 Engine Ignition Analyzer to Analyze Hidden Defects at the Initial Level

OTI800 Engine Ignition Analyzer Quick and easy diagnostics of:

-Non-starts

-Misfires

-Defective coils

-Fouled or damaged spark plugs

-Damaged spark plug wires

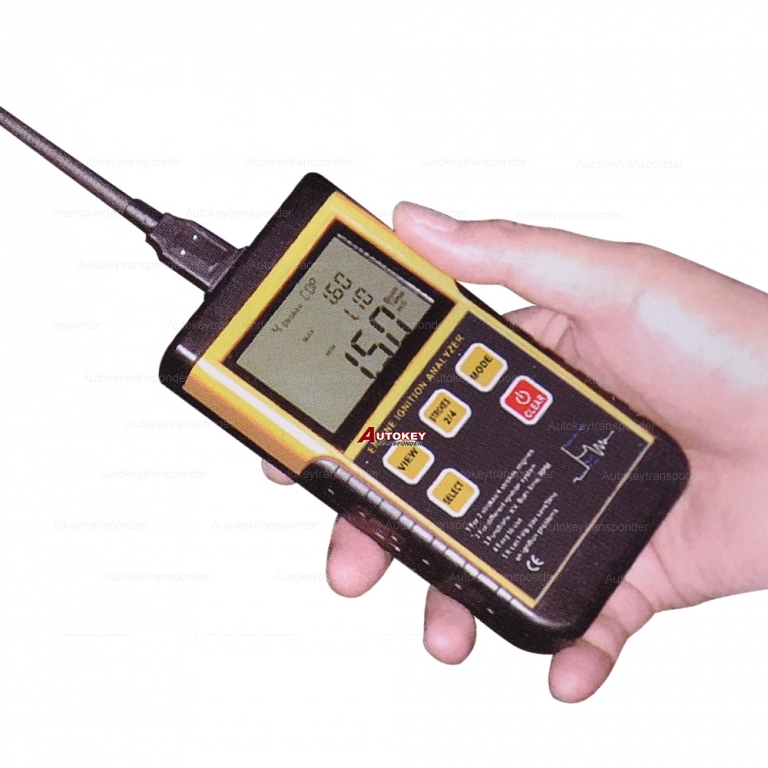

A small handheld analyzer like this one could read and display so many parameters of the ignition status. Just touch the COP with the magic wand and you learn a lot about the firing in that cylinder. It deals with the secondary of the coil mostly but that is enough info to troubleshoot a dead or misfiring cylinder. LCD display is amazingly clear and easy to read. Fast to diagnose problems. So far has been tested on cars, motorcycles, mowers, weed wackers, and small engines

You can use it at work for testing spark strength in ignition wires on gasoline engine. It is very quick and effective for this task.

For the serious tech, you need this in your box

The Engine Ignition Analyzer was created specially to perform quick and reliable diagnostics of non-starts, misfires, fouled up or damaged spark plugs or spark plug wires, by comparing digital read-outs of the spark plug voltage and spark burn time between cylinders on engines using coil on plug, Coil near plug. Conventional distributor/ignition coil, DIS (Distributor-less) or waste spark and magneto technologies.

Measures spark peak voltage, for finding primary and secondary coil faults
Displays ignition waveforms in real time, allowing for detailed analysis
Detects ramp time (or dwell angle), for diagnosis of timing issues and primary coil faults
Has chart and comparison functions, allowing the user to find intermittent issues

How to use:

1. Select the ignition system to measured (spark plug wire or coil on plug), and the number of cycles.

2. Select the measurement to show in the main display (RPM, spark burn time and spark plug voltage) and secondary display (Minimum and Maximum of the main display or the complementary measurements).

3. Place the antenna's capacitive pick-up on top of the coil on plug module, or over a spark plug or ignition coil wire, and then read the measurements on the LCD display.

Technological Specifications:

Display:

Main display and secondary display

Function indicator

Measurement units indicator

Spark detection indicator

Number of strokes indicator

Ignition system indicator

Low battery indicator

Ignition system comp:

Coil on plug, coil near plug, DIS, conventional and magneto

Engine strokes:

2 and 4 strokes and DIS

Electrical Specifications:

Power: 9 Volt battery, type MN1604

Auto POWER OFF: Automatically POWER OFF after 3 min of no operation

Battery life: Approximately 15 hours (w/alkaline battery)

Probe length: 25 CM including capacitive pick-up

Included accessories:

The capacitive pick-up

Padded hard carrying case

User's manual

1 x 9 Volt alkaline battery
