Transponder Key and Remote Fit For Auto
Printer Friendly Tell a Friend

Buy Original Xhorse VVDI MB BGA TooL Benz Key Programmer Get Free EIS/ELV Test Line

CodeSK185+SF205

Product Description

  1. Buy Original Xhorse VVDI MB BGA TooL Benz Key Programmer Get Free EIS/ELV Test Line
  2. Frequently online update
  3. Support Benz key,read password and prepare new key via IR.
  4. More necessary functions for Benz key programming
Buy Original Xhorse VVDI MB BGA TooL Benz Key Programmer Get Free EIS/ELV Test Line

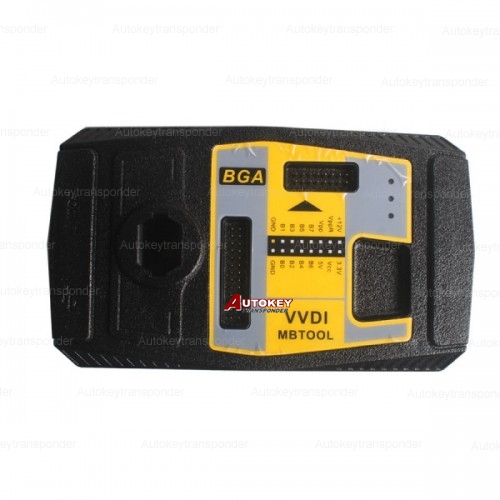

Xhorse VVDI MB BGA TOOL Function Introduction:

1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV function

Notice:
1. If you have SL273-C Xhorse Condor Mini Plus or SL273 Original iKeycutter CONDOR XC-MINI, you can buy SK185-B VVDI MB BGA Tool at much cheaper price.
2. Supports Password Calculator Function. It takes 4 minutes to collect data, and 2 minutes to calculate. Check MB BGA Tool Token Service

Support Key Types Display:

Support Key Types Display

Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model Support IR/OBD:
W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906

Keys Version Supported:
v03, v06, v08
v05, v07, v09
v59,v61

Package List:

1. VVDI-MB TOOL device
2. IR adaptor
3. USB cable
4. NEC adaptor 1
5. NEC adaptor 2

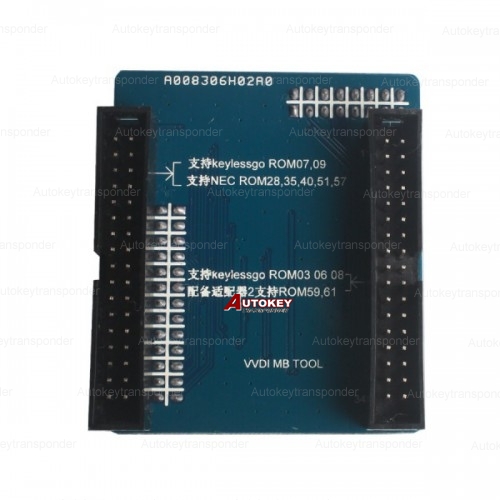

6. NEC adaptor base PCB
7. K Line in OBD line
8. OBD line
9. Mercedes Locks OBD Test line

Feedback:

I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU ??? -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU ??? - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU ??? - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successfulW639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK

Only support parts of HC05, HC08 motorola eis(K line),if cannot support will show error, need to remove eis get eeprom. we have tested W215 ok, but not means all W215 can support.in fact only support parts of this type.

please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password & erase password)
Write EIS data back,then Personalize W204ESL

Package List Diisplay:

Package List Diisplay

Connection Display:

VVDI MB Tool Bag Connection Picture 1
VVDI MB Tool Bag Connection Picture 2
VVDI MB Tool Bag Connection Picture 3

FAQ:

Q1:
I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
Can any one test?
A1: Read eis via obd for W164, W169, W211, W209, require gateway connected
