Transponder Key and Remote Fit For Auto
Printer Friendly Tell a Friend

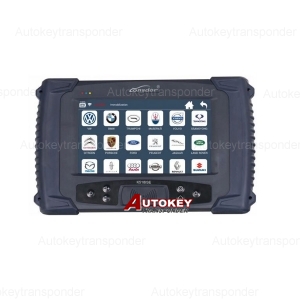

2017 Newest Lonsdor K518ISE Key Programmer with Odometer Adjustment for All Makes

Codek518
style:
K518ISE key programmer is the latest version of Lonsdor, with wider vehicle coverage in key programming, it is customized as the first masterpiece to the overseas market from Lonsdor.
Descriptions for 2017 Newest Lonsdor K518ISE Key Programmer with Odometer Adjustment for All Makes

2017 Newest Lonsdor K518ISE Key Programmer with Odometer Adjustment for All Makes USER MANUAL

Lonsdor K518ISE Main Functions & Features:

Immobilization
Odometer adjustment
Built-in Volkswagen 4th 5th adapter
Built-in Chip & remote detection module.
Free BMW FEM key programming

Lonsdor K518ISE Key programmer Special Features:

Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
BMW CAS3/CAS3+/CAS3++: direct OBD programming
BMW CAS4/CAS4+: dismantle & read data programming
16 -New Maserati: smart key programming
16 -New Ford: smart key programming
Hyundai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
Ferrari (458, F12, F149): direct OBD programming
Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.

Lonsdor K518ISE  Immobilization Car List:

Europe:
Audi, BMW, Benz, VW, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG,
Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart,
Borgward

America:
Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury

Asia:
Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki,
Toyota, Shigaoka Queen

China:
Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car
models are included)

Odometer Adjustment Car List:
VW, Porsche, Ford, Jaguar, Land Rover, Mazda, Audi, Renault, Hummer, Hyundai, Kia...
More high-end cars will be updated very soon.

Note: K518ISE is still under rapid upgrading, more functions and be released soon, please refer to our website www.lonsdor.com foalso you can ??One key update?? for the latest version by yourself.

Lonsdor K518ISE can program Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator(optional)

SKE-LT: Smart Key emulator - Toyota/Lexus smart key for all key lost via OBD.(optional)
Black:  SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.(optional)
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.(optional)
Green: SKE-LT-DST80(98)-Supports 98 smart key.(optional)
Blue: SKE-LT-8A(A9)-Supports A9 smart key. (optional)


Lonsdor K518ISE Technical Parameter:

RFID:                                                          Support 125KHz ASK,134.2KHz FSK
CPU:                                                           ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display:                                                      1024*600,7 inch IPS capacitive
Memory:                                                      eMMC 8G RAM 1G
Battery Capacity:                                       3800 mAh
Power Supply:                                           DC12V 1A
Power port:                                                5.5x2.1mm
OBD Port:                                                   OBD-II
Comm Port:                                               USB 2.0-type B
OBDII Protocols:                                       ISO15765,ISO9141,ISO14230,SAEJ1850,VW TP1.6 TP2.0 etc
KPROG:                                                     Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance:           10m

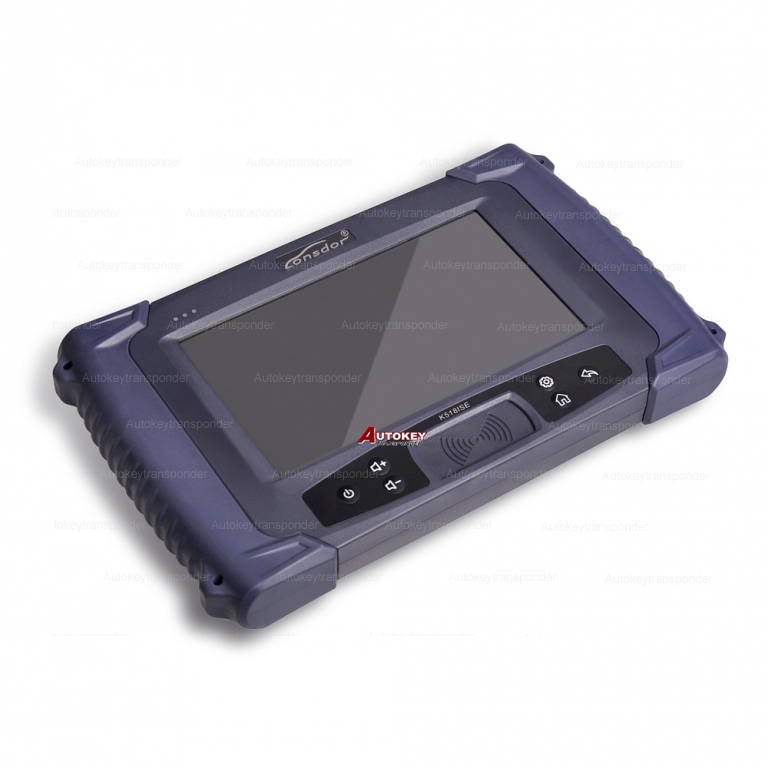

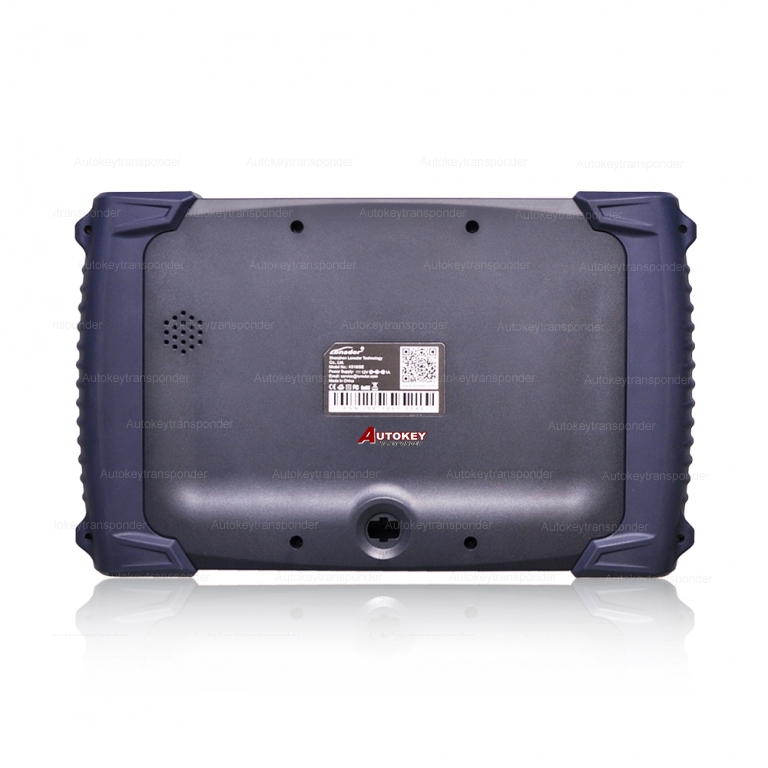

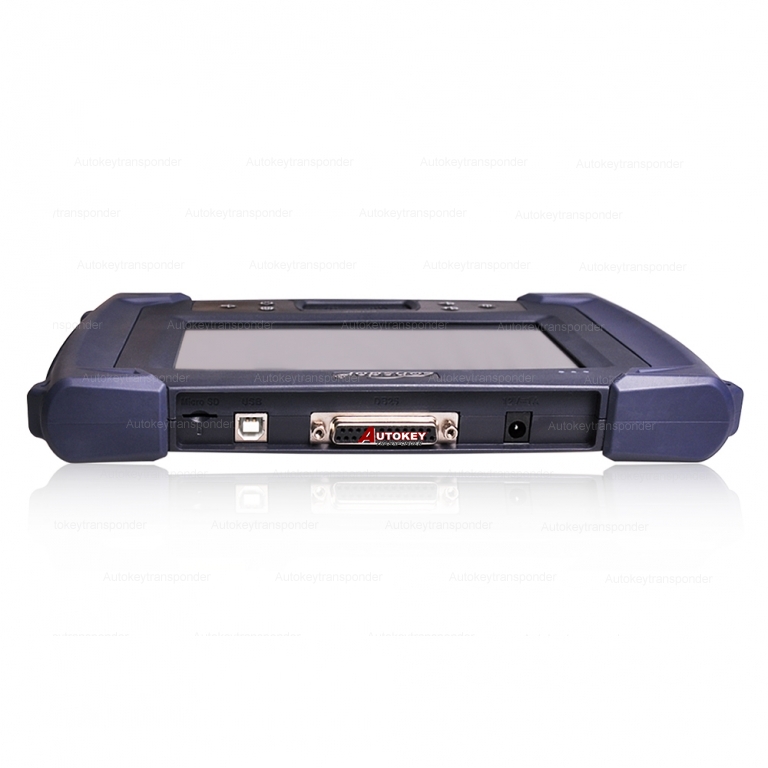

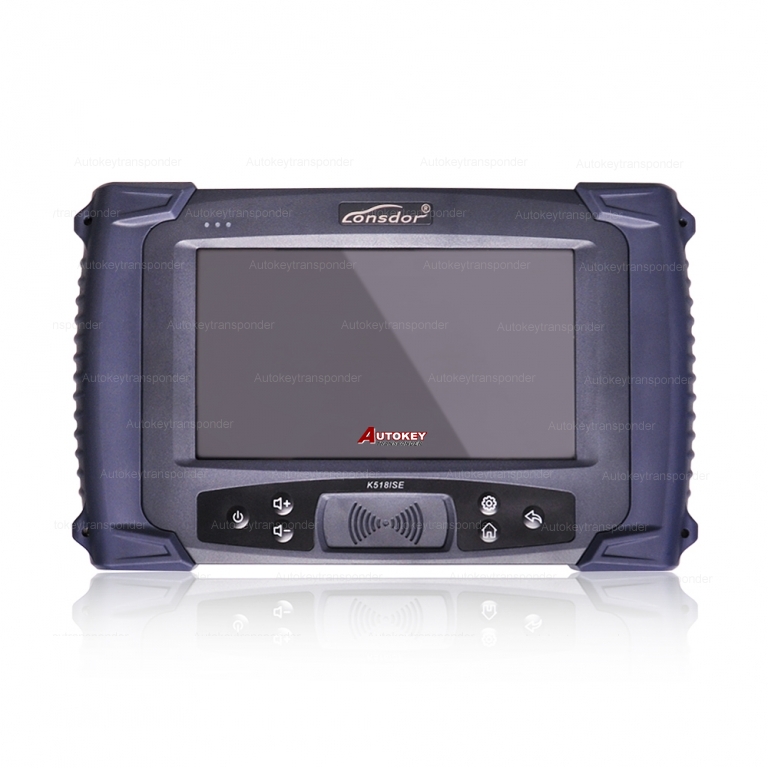

Lonsdor K518ISE Main Unit Appearance:

1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE
Screen shot: press power button and volume down button together

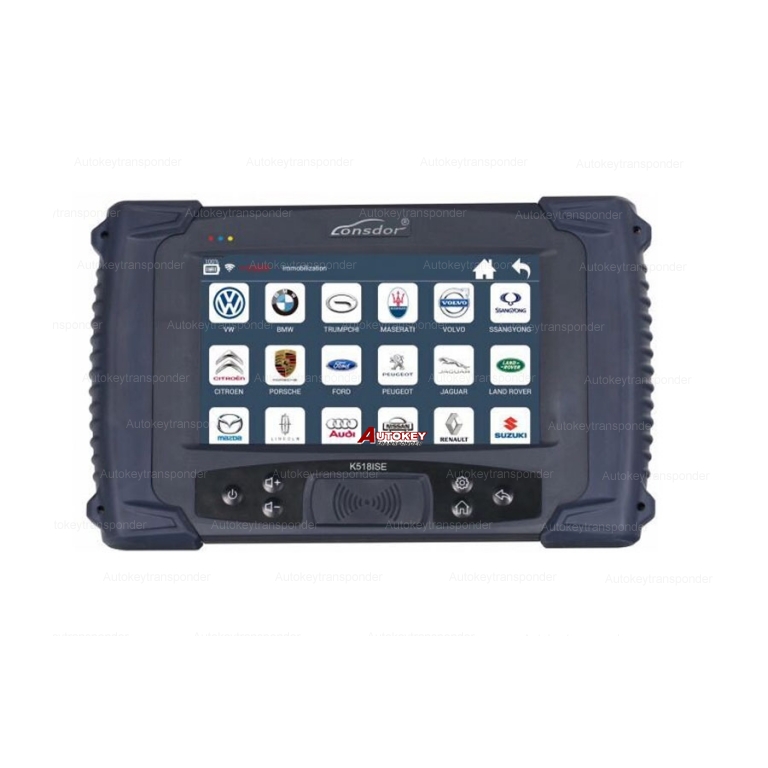

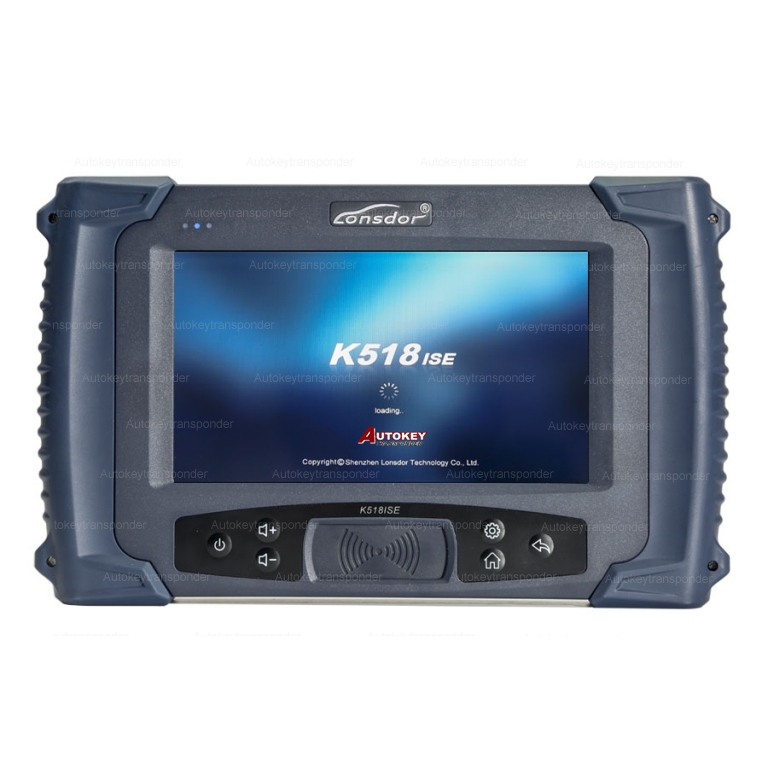

Lonsdor K518ISE Main interface:



Lonsdor K518ISE Setting interface:



Lonsdor K518ISE Adaptor Binding:

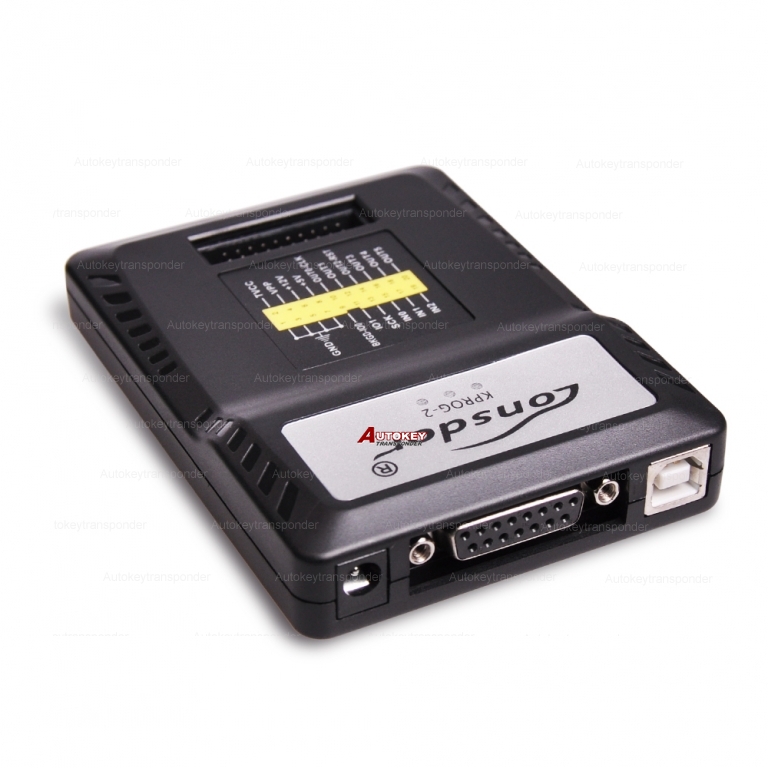

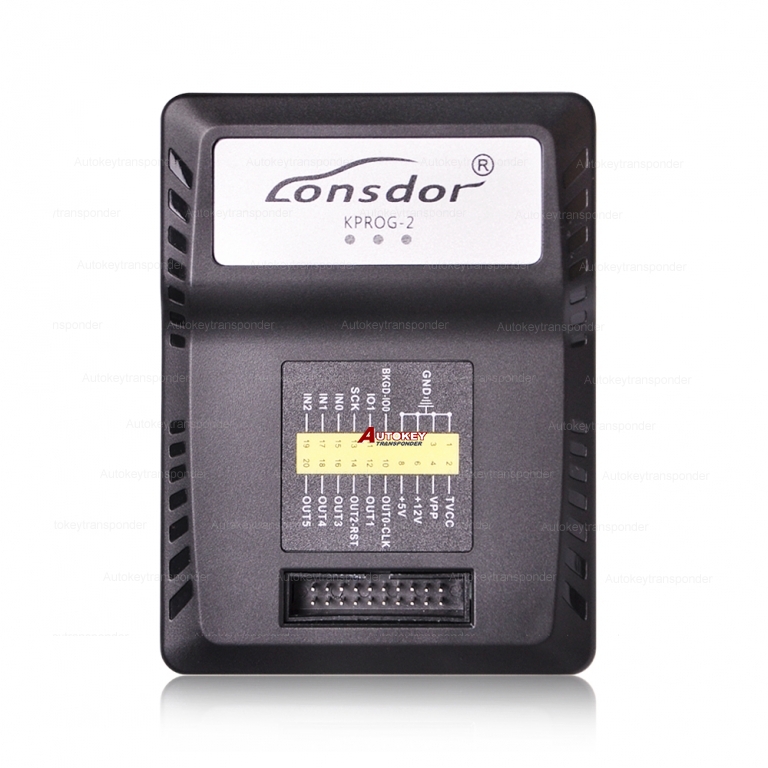

Please note that KPROG adapter must be bound to K518ISE before using, here is the binding process:
Step 1. Connect adapter to K518ISE with mainline
Step 2. Connect K518ISE with 12V power supply
Step 3. Enter into Setting
Step 4. Click Bind adapter
Step 5. Click OK to complete

Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the One key update for latest news

Lonsdor K518ISE vs. SKP1000 vs. OBDSTAR X300 Pro3 vs. SKP900


Product NameLonsdor K518ISESKP1000OBDSTAR X300 Pro3SKP900
Appearance2017 Newest Lonsdor K518ISE Key Programmer with Odometer Adjustment for All Makes
Item.No3511317351121935111313511148
Price$1,199$499$530$369
ManufacturerLonsdorLonsdorOBDSTARSuperOBD




Update Methodupdate onlineLifetime free update software and firmwareupdate onlineupdate online
Vehicle Coveragehas a wide range of vehicle coverage, incl. the luxury cars i.e BMW, Volvo, Ferrari, Bentley, Lamborghini as well as Volkswagen 4th 5th IMMO,Toyota/Lexus smart key all key lost via OBD etc.nearly the same vehicle coverage as SuperOBD skp900Obdstar x300 vehicle list
Find the function you want,
and download the vehicle list pdf to check
Support almost all vehicles in the world
FunctionsOBD mileage adjustment, remote controller, oil/service reset, ETC, EPB, EEPROM chip read.(BMW FEM module programming)Special function:OBD mileage adjustment, remote controller, oil/service reset, ETC, EPB, EEPROM chip read.X-300 pro3 Key Master covers:
OBDSTAR X100 Pro and X300 Pro function,
which can support Immobilizer, Odometer Adjust. EEprom/PIC, OBDII, EPB, Oil/Service reset and Battery Matching...

Car Key programming,
read pin code via OBD2

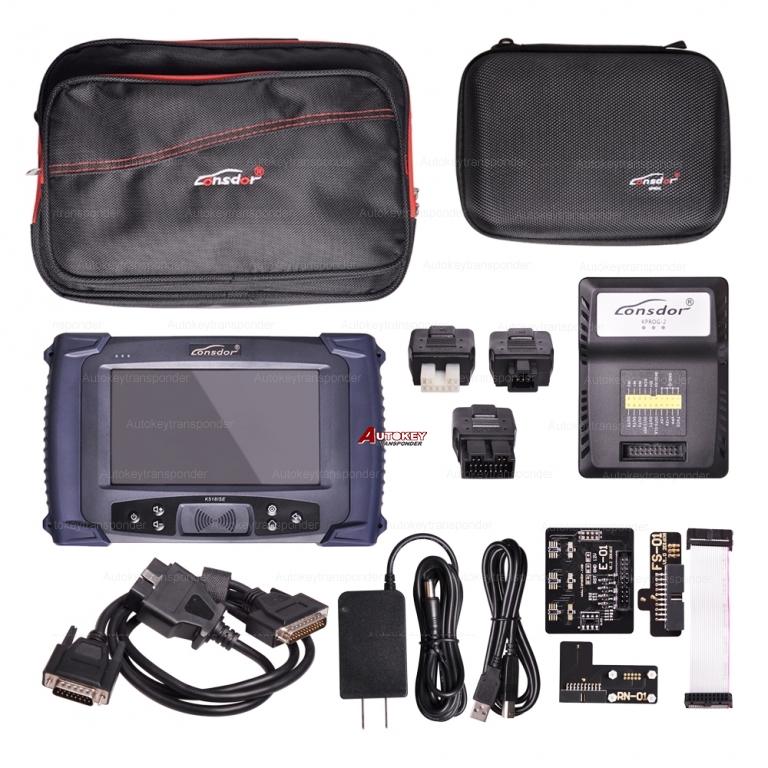

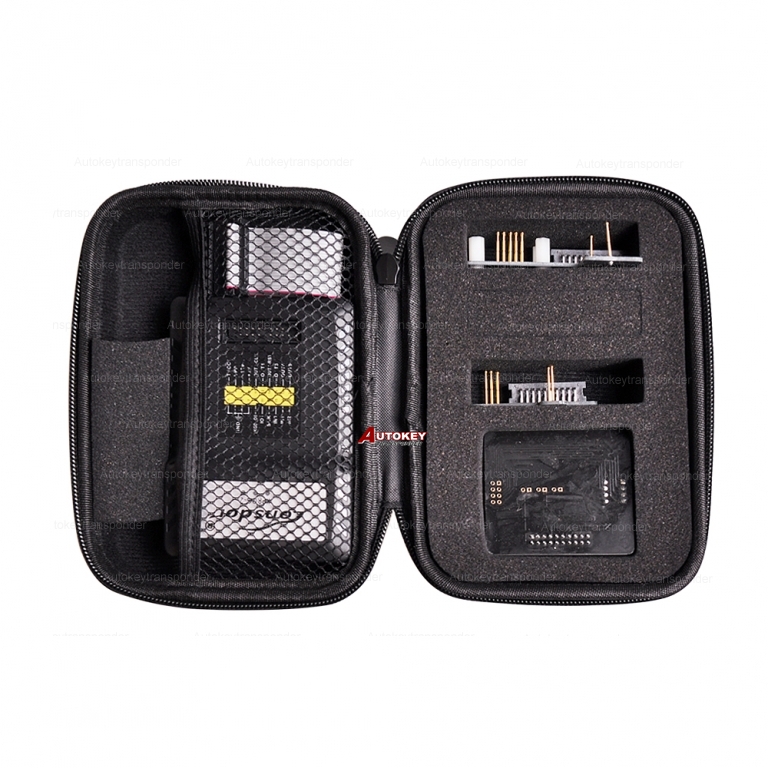

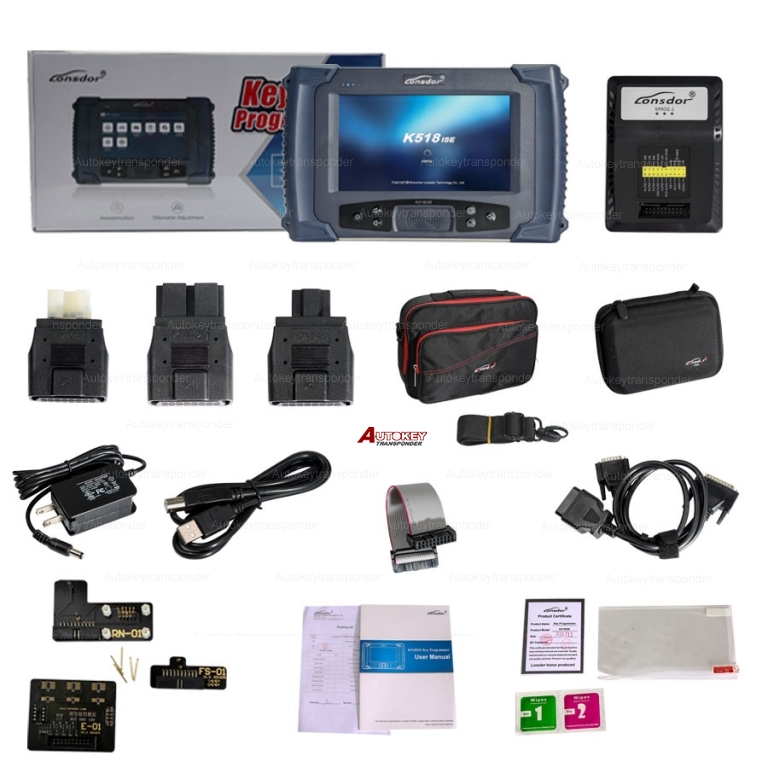

Lonsdor K518ISE Package List:

1* Portable Bag(big)
1*Main Host

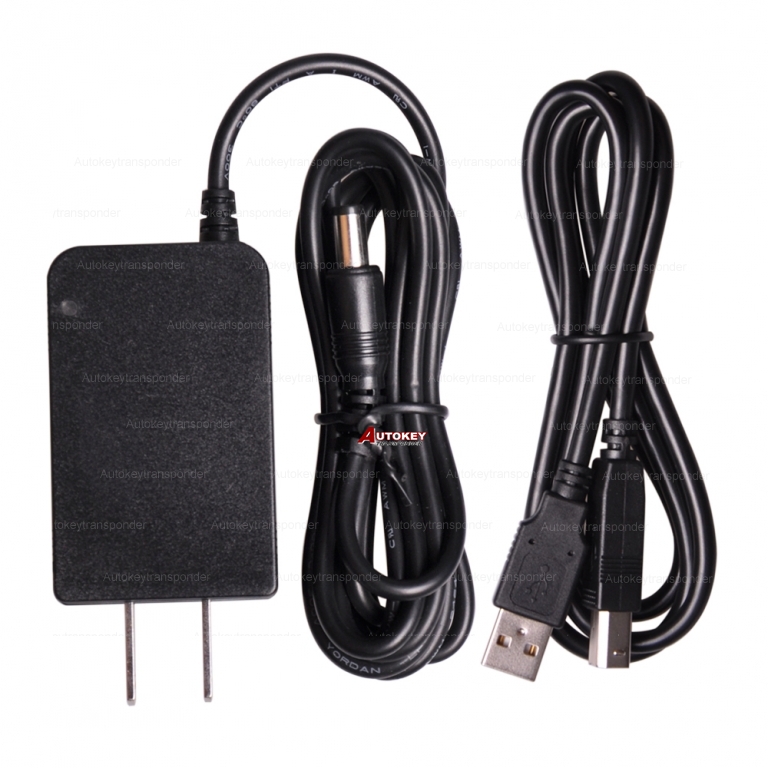

1*Power Adaptor
1*USB Cable
1*Packing Bundle

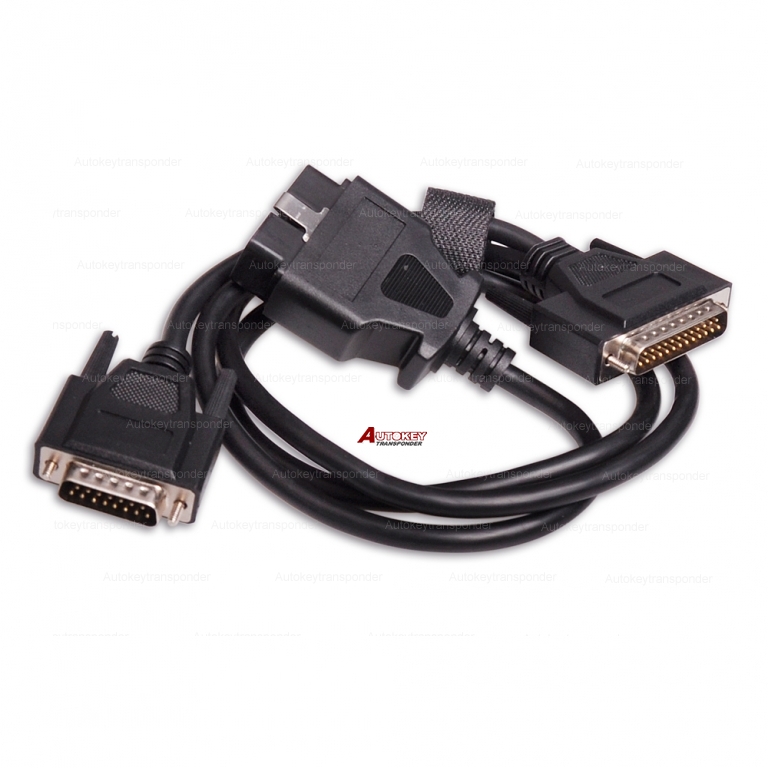

1*OBD Test Cable

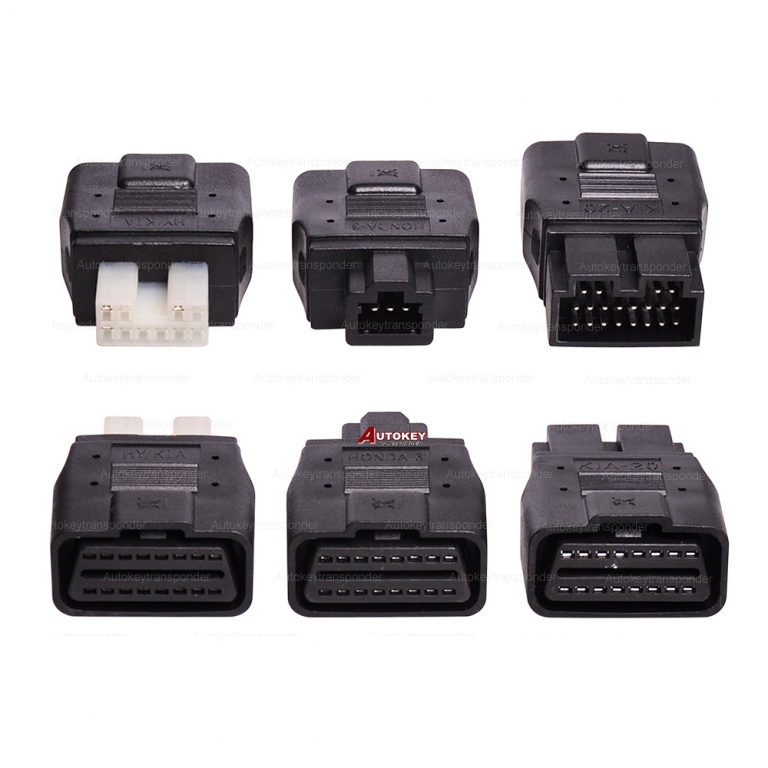

1*Extra Connector
1*User Manual
1*Portable Bag(small)
1*KPROG Adapter

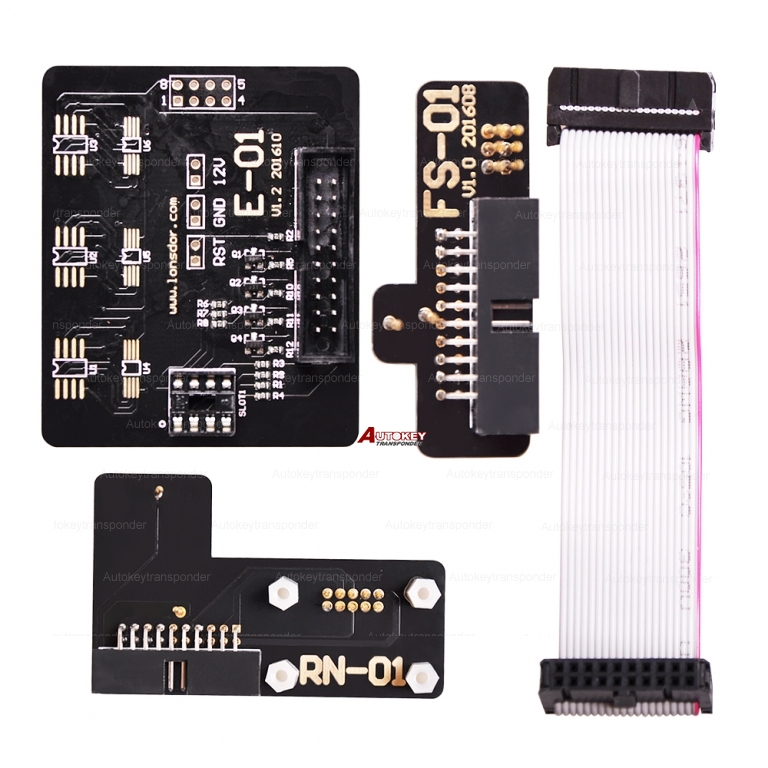

1*RN-01 Board
1*E-01 Board
1*FS-01 Board
1*20P Cable
5*Backup Pin
1*Certificate
