Yanhua Mini ACDP Programming Master BMW Full Package with Module1/2/3/4/7/8/11 Total 7 Authorizations

Highlights:
Weight:
3.0KG     ( 6.61LB )
Returns:
Return for refund within 30 days,buyer pays return shipping

Description



Yanhua Mini ACDP Programming Master BMW Full Package with Module1/2/3/4/7/8/11 Total 7 Authorizations


Yanhua Mini ACDP with Module1/2/3/4/7/8/11 BMW Full Package Includes as below:

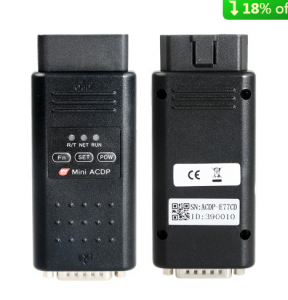

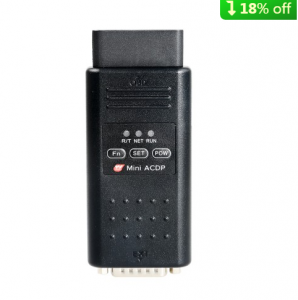

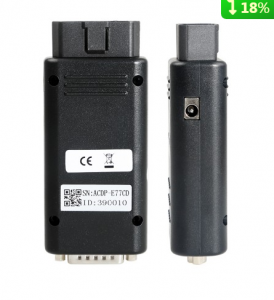

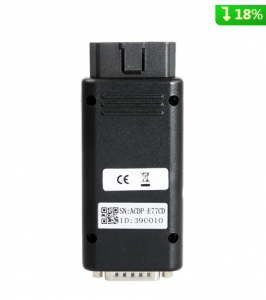

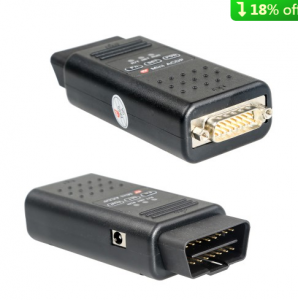

1. Yanhua Mini ACDP Master Host
Support93、24、25、 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP),
and parts of Freescale / NEC MCU in circuit programming (ICP). This module is a necessary basic configuration for other modules.

2. CAS Module (Module1)
(1) Support CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data.
(2) Support CAS4/CAS4+ IMMO key programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.
(3) newly add CAS4/CAS4+ OBD Function



3. FEM/BDC Module (Module2)
Support FEM/BDC IMMO key programming by ICP or OBP mode, Mileage reset, Recover/Backup data.

4. ISN Module (Module3)
Read/write N20/N55/N13 ISN code via OBD.
Read/write MSV80/MSD85 ISN code without opening DME shell.
Read/write other DME ISN code by opening DME shell.

5. Read and write BMW M35080, 35160DO WT etc EEPROM (Module4)
Read and write BMW M35080, 35160DO WT etc EEPROM, erase 080DOWQ, 080DOWT, 160DOWQ, 160DOWT, M35128 models.

6. Refresh BMW Keys (Module7)
Refresh BMW E chassis/F chassis key to make BMW keys can be used repeatedly.

7. Yanhua Mini ACDP Module8 BMW FRM Footwell Module (Module8)
Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.
The advantage of BMW FRM of ACDP: Integrated data reading/writing, data conversion in one programmer; no need to write other cars'data; no need to coding. Simple and efficient.

8. Yanhua Mini ACDP Module11 Clear EGS ISN (Module11)
Scope of application:
For connecting BMW 6HP/8HP gearbox

Yanhua Mini ACDP Highlights:

Test car NO longer needs engines
YANHUA car keys programming NO longer need soldering iron
Car locksmith NO longer needs soldering work.
The first in the world
Programming no need soldering

Yanhua Mini ACDP IMMO/Mileage Programming

No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin

Module1 BMW CAS1-CAS3+Key Programming via OBD
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys Lost

Module1 BMW CAS4/CAS4+
Read CAS4 EEPROM without soldering/welding
Add Keys without soldering/welding
Reset Mileage without soldering/welding
Back up or recover CAS without soldering/welding
All keys Lost without soldering/welding

Module2 BMW FEM/BDC
All keys lost without soldering/welding
Add keys without soldering/welding
Delete Keys without soldering/welding
Enable/Disable keys without soldering/welding
Read Key ID
Repair/Replace FEM Module without soldering/welding
Reset Mileage without soldering/welding

Module3 Read and Write ISN Code
N20(mevd1724, mevd172P, mevd1729), N13(mevd1725, ), N55(mevd172, mevd1726, mevd172G, mevd172S, MEVD17, ), MSV80, MSD81, MSD85, MSD85HY, MSD87, MSV90, MEVD1728(s63), mev1722, med172, mevd1727, dde701_edc17c50, BMSX….

Module4 BMW 35080, 35160DO WT Read & Write
Read and write BMW M35080, 35160DO WT etc EEPROM

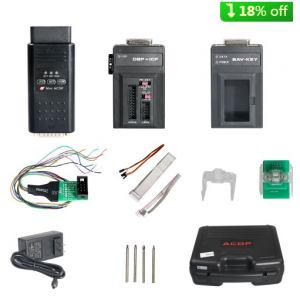

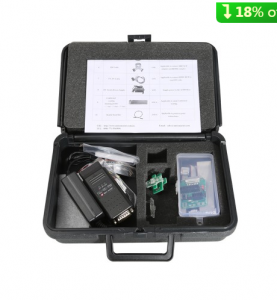

Yanhua Mini ACDP Master Basic Configuration Package List:

1pc x ACDP Programmer Master
1pc x OBP+ICP adapter
1pc x Puncture socket
1pc x P8P ribbon cable
1pc x 8P cable
1pc x 20P cable
1pc x 12V power adapter
3pcs x paint surface cleaning needles (1.0mm,0.8mm,0.5mm)
1pc x BAV Key Adapter

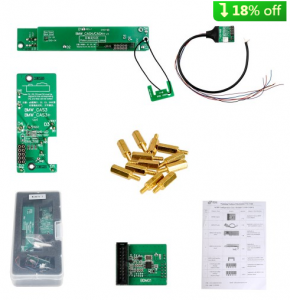

Adaper List (Module1 SK247-1)
1pc x BDM01 adapter
1pc x BMW-CAS3 interface board
1pc x BMW-CAS4 interface board
1pc x BMW CAS2/3/4 interface
1pc x CAS3 firmware package
1pc x CAS4 firmware package

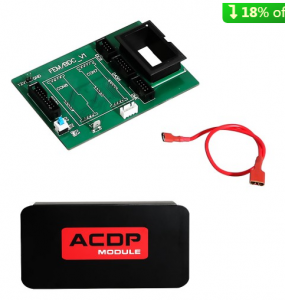

Adapter List (Module2 SK247-2)
1pc x FEM bridge
1pc x BDC bridge
1pc x Desktop OBD transfer board
1pc x BMW FEM/BDC test platform
1pc x Single-pin double-head cable
1pc x FEM bridge firmware package
1pc x BDC bridge firmware package

Adapter List (Module3 SK247-3)
1pc x BMW-N13 port board
1pc x N20 caliper for opening the hole of shell
1pc x N13 firmware package of interface board

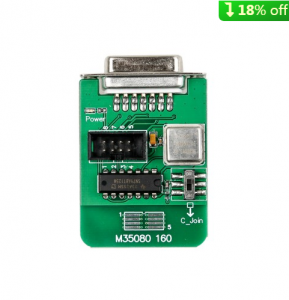

Adapter List (Module4 SK247-4)
1pc x Yanhua Mini ACDP Programming Master BMW 35080 & 35160DO Adapter

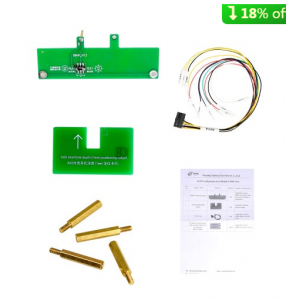

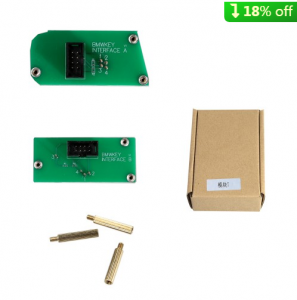

Adapter List (Module 7 SK247-7)
1pc x BMW F chassis(HUFXXXX)Key interface board
1pc x BMW F chassis(5WKXXXX)Key interface board
1pc x BMW Key simulator
6pcs x BMW Key Refresh Module Copper Pillar Package (M2*14+3)

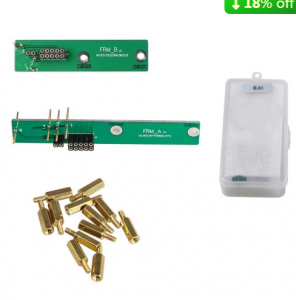

Adapter List (Module8 SK247-8)
1pc x BMW FRM module (FRM Footwell module), 0L15Y chip Interface board
1pc x BMW FRM module (FRM Footwell module), 3M25J chip Interface board
12pcs x BMW FRM module (FRM Footwell module), Copper pillar package (Single head six angle stud M2.5*12+6mm)

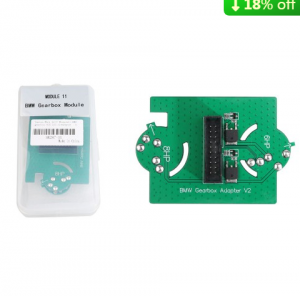

Adapter List (Module11 SK247-11)
1pc x BMW gearbox module interface board
